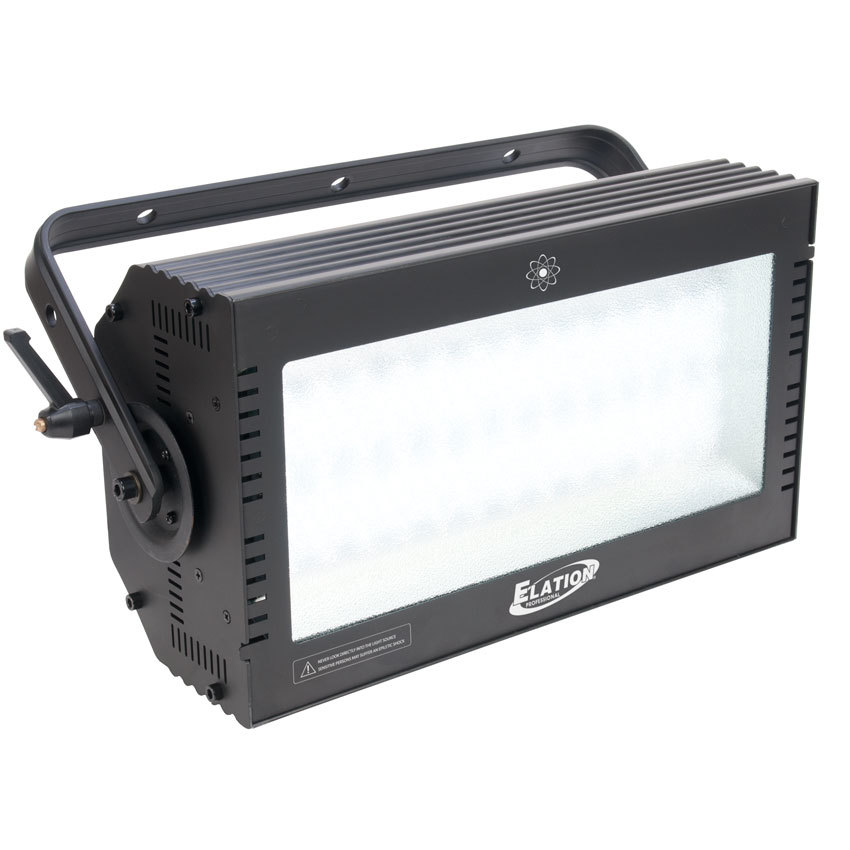

Elation Protron 3K LED Strobe

Category:

Description

The Protron 3K™ is a new high powered LED strobe featuring (202) CREE™ 3W Cool White LEDs, 80,000 lumens, 120° beam angle, (2) power modes (HIGH or LOW), strobe effect macros including burst, pulse, lighting, and full ON*, (2) silent cooling fans, electronic dimming, 3/5pin DMX and Locking Power Cable in/out connections, (4) button LCD control panel, an integrated rigging yoke, 900W max power consumption, and a multi-voltage universal auto switching power supply (100-240v). *Thermally regulated output at full max 10 seconds.

Specifications
SOURCE
(202) CREE™ 3W Cool White LEDs
80,000 Total Lumens
50,000 Hour Average LED Life**
**LED Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA
16,450 LUX 1,528 FC @3.3’ (1m) (120° Full ON)

EFFECTS
Electronic Dimming
Burst, Pulse, Lighting, Full ON*
*Thermally regulated output at full max 10 seconds.

CONTROL / CONNECTIONS
4 DMX Channel Modes (1 / 2 / 3 / 4)
4 Button Control Panel
LCD Menu Display
3/5pin DMX In/Out
Locking Power Cable In/Out
Power Link Up To (2) Units at 120V

SIZE / WEIGHT
Length: 21.5” (546mm)
Width: 6.9” (175mm)
Vertical Height: 11.7” (296mm)
Weight: 17.2 lbs. (7.8kg)

ELECTRICAL / THERMAL
AC 100-240V – 50/60Hz
900W Max Power Consumption
Max Ambient Temperature 104°F (40°C)
